Functional Flow

Teminology

In the context of a Landscape, a Functional Flow represents a functional information exchange between two or more applications

Example

GEN.002 is FunctionalFlow that describes interactions between applications to execute a Customer offboarding. GEN.002 is part of the Onboarding Landscape

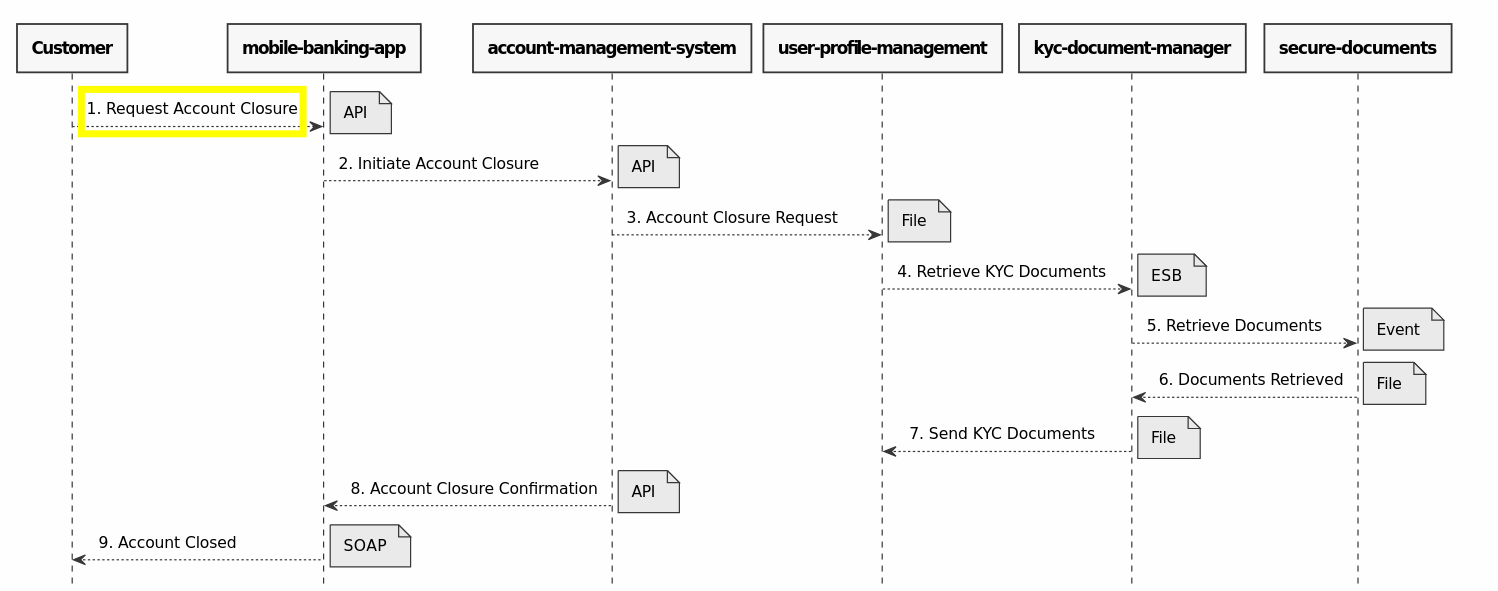

Sequence Diagram

Functional Flow can be thought of as use cases that are typically represented using sequence diagrams. They describe how specific functions or processes are carried out within the landscape.

Functional flows provide a detailed and step-by-step depiction of how applications interact and work together to achieve a particular task or goal.

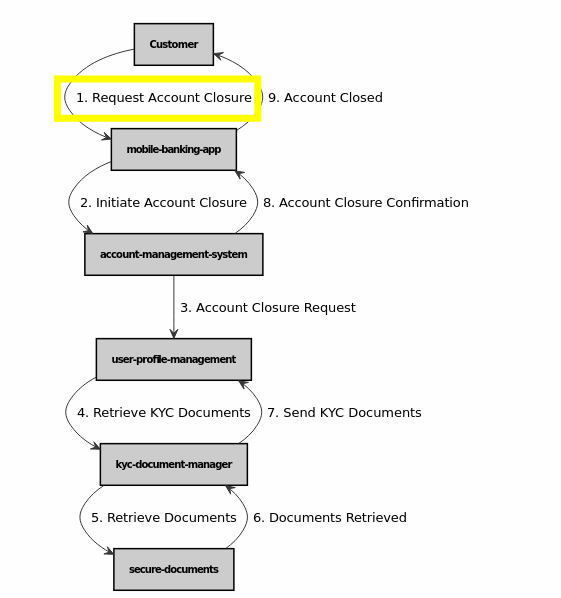

Functional Flow as a sequence of steps provided by Interfaces

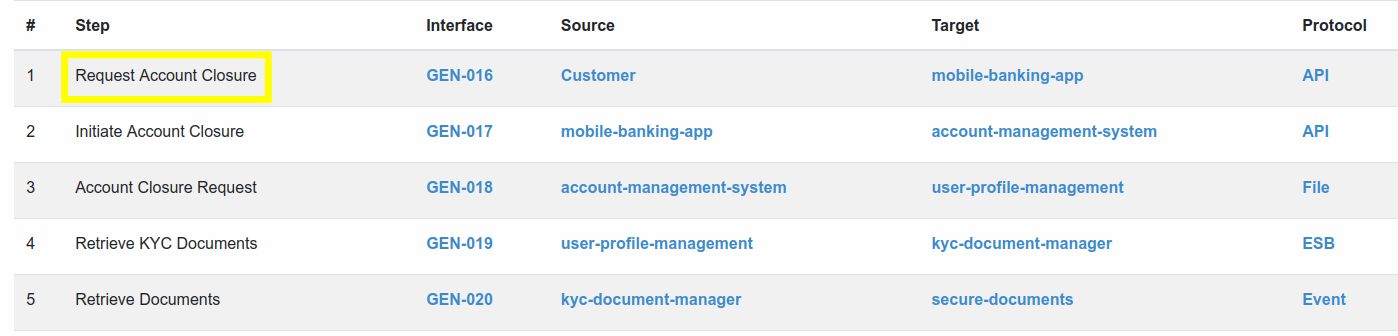

GEN.002 FunctionalFlow is composed of many steps :

• Request Account Closure
• Initiate Account Closure
• Account Closure Request
• …

FunctionalFlow is a list of steps, each step leverages on an Interface. Interface is a “pipeline” between two Applications.

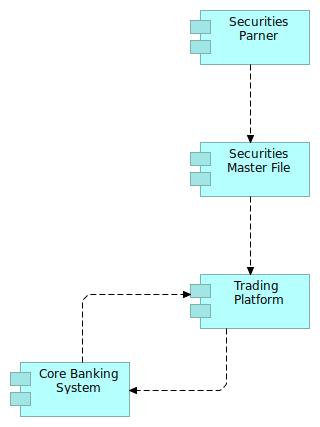

Application Cooperation Diagram

Functional Flow is mainly thought as a use case described with a sequence diagram. Another representation is a Archimate Application Cooperation Viewpoint.

NEXT : If you want to continue to dicover the metamodel, see what is an Interface

Mapping with Archimate specification

Basically, a Functional Flow is a subset of Landscape, representing a specific usage of a part of the landscape in a specific functional use case.

Archimate 3.1

Like Landscape, a Functional Flow is typically an Application Cooperation Viewpoint.
